Base Vehicle: Toyota Land Cruiser 78 (LC78) V6 Petrol
- Engine: 4.0L V6 Petrol
- Power Output: ~228 hp @ 4,800 rpm
- Torque: ~380 Nm @ 3,600 rpm
- Transmission: 5-speed manual
- Drivetrain: 4x4
- Fuel Capacity: 90L (Main) + 90L (Auxiliary) = 180L
- Fuel Economy: ~12-14 L/100 km (depending on load and terrain)
- Suspension: Heavy-duty leaf springs with shock absorbers
- Brakes: Front – Disc; Rear – Drum
- Ground Clearance: ~235 mm

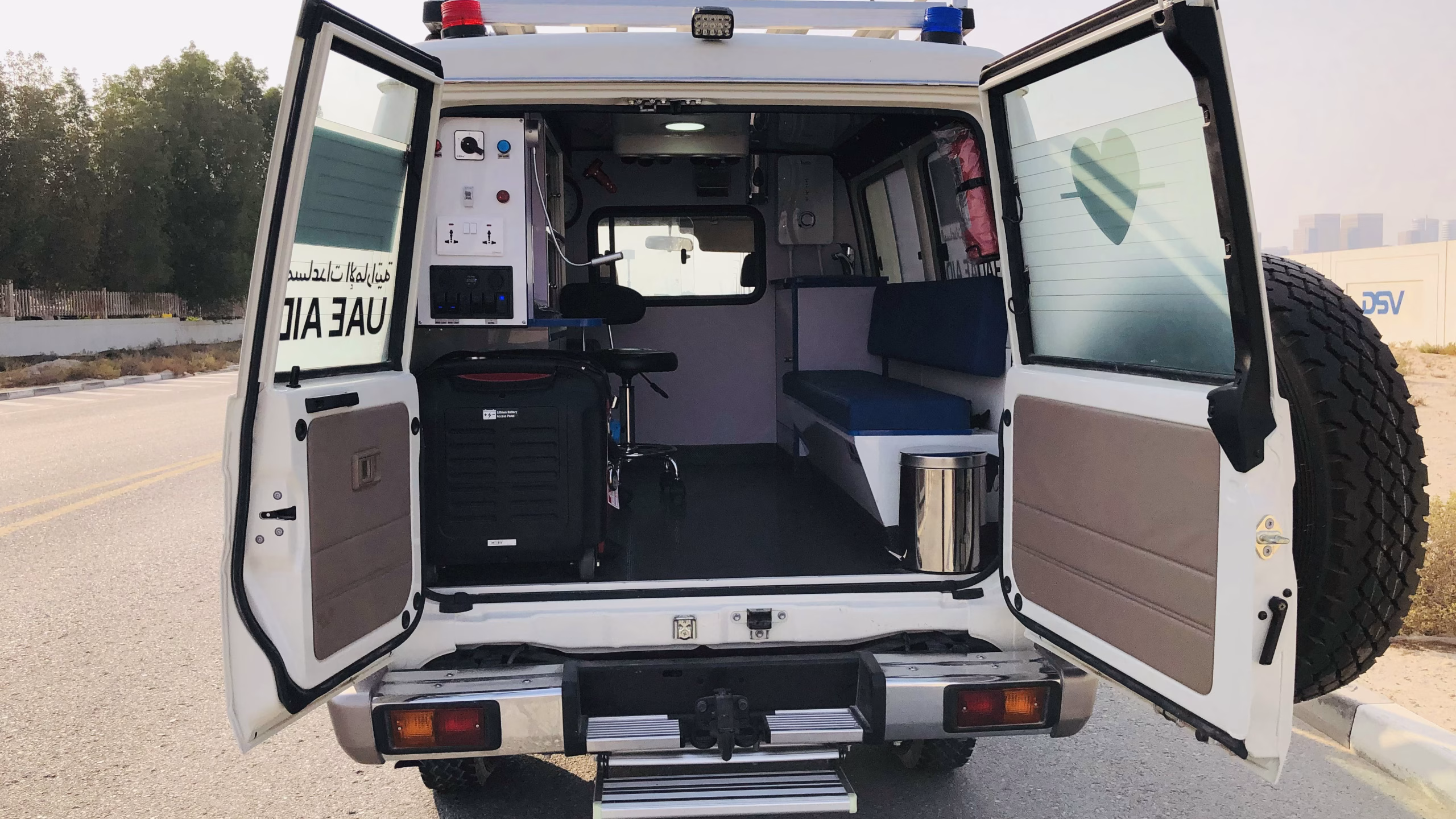

Mobile Clinic Conversion Features
- Medical Fridge
- Type: DC-powered, medical-grade refrigerator
- Temperature Range: +2°C to -20°C (adjustable depending on medical needs)
- Power Source: Secondary battery system (or generator)
- Capacity: 30L to 100L (adjustable per requirements)
- Features: Medical-grade certification, shock-proof design
- Generator
- Type: Diesel or petrol generator
- Power Output: 3 kVA – 5 kVA (depending on power needs)
- Mounting Location: Typically rear or under-chassis
- Features: Silent operation, fuel efficiency, easy maintenance
- Fuel Type: Petrol or Diesel (matched to vehicle fuel system)
- Secondary Battery System
- Battery Type: Deep-cycle AGM or Lithium-ion batteries
- Capacity: 100Ah – 200Ah (customizable to match power demands)
- Inverter: 12V to 220V AC inverter (for powering medical devices)
- Charging System: Dual charging from vehicle alternator and solar panels or external shore power
- Rear Air Conditioning (AC)
- Type: Roof-mounted or wall-mounted auxiliary AC
- Cooling Capacity: 12,000 – 18,000 BTU (depending on cabin size)
- Power Source: Secondary battery or generator
- Features: High-efficiency, low noise, climate control for comfort in harsh conditions
- Medical Cabinet
- Material: Stainless steel or heavy-duty plastic
- Design: Lockable, adjustable shelving
- Storage Capacity: Customizable, designed for medical tools, medicines, and equipment
- Accessibility: Easy access, clear labeling, secure compartments for critical items
- First Aid Kit
- Content:
- Bandages, gauze, and medical tape
- Antiseptics and disinfectants
- CPR mask and first-aid manual
- Thermometer, stethoscope, and BP cuff
- Emergency medical supplies (splints, tourniquets, etc.)
- Pain relief and emergency medication
- Storage: Mounted in an easily accessible location, preferably near the door or in a dedicated compartment

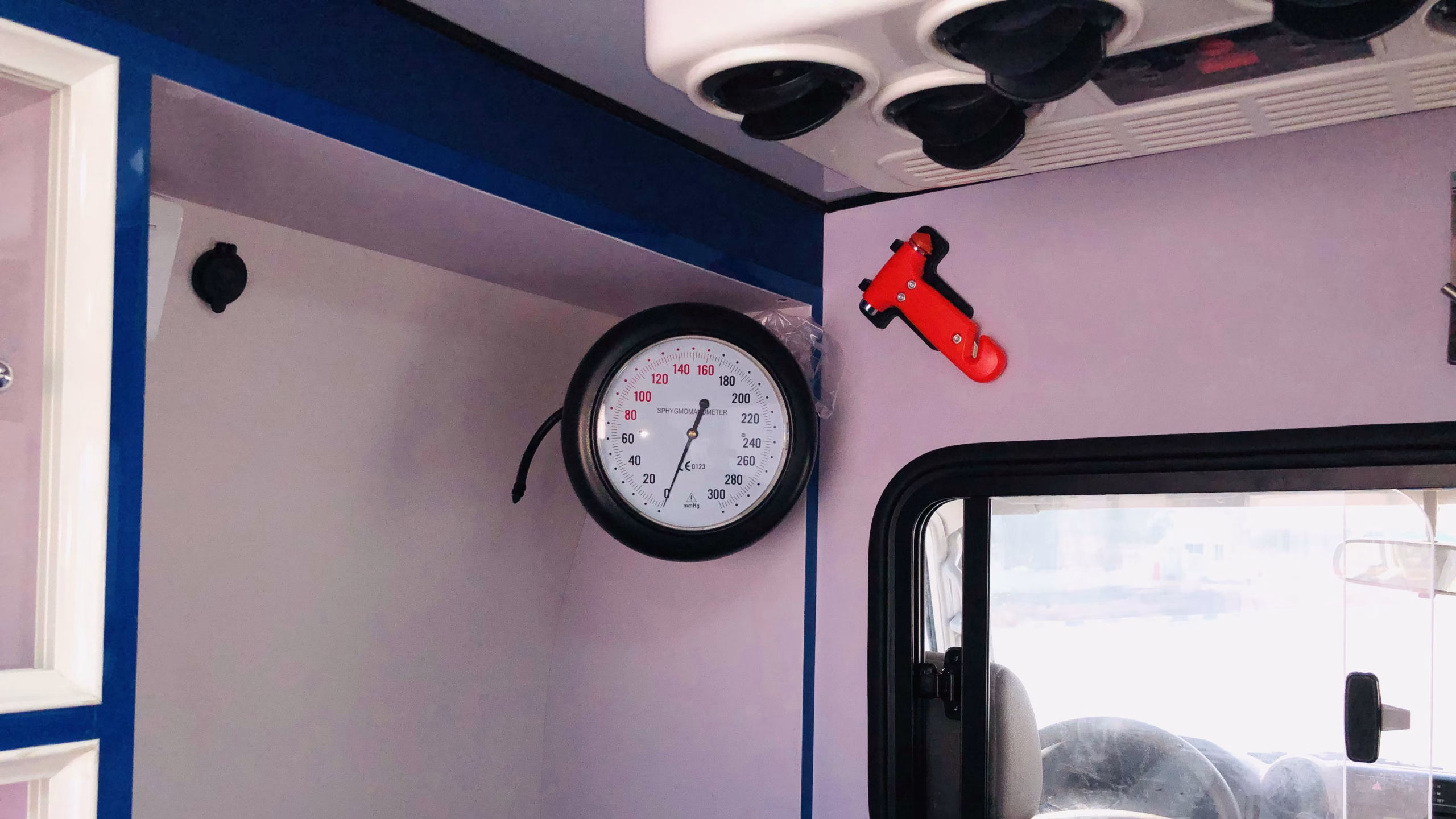

- Blood Pressure Meter (BP Meter)
- Type: Digital or manual BP cuff
- Mounting: Wall-mounted or portable with dedicated storage space
- Power: Battery-operated or chargeable unit
- Epoxy Flooring
- Material: Commercial-grade epoxy flooring with anti-slip properties
- Color: Light color (such as gray or white) to enhance visibility
- Durability: Chemical-resistant, easy to clean, and long-lasting
- Features: Waterproof and hygienic surface for medical use
- Bench (Seating)
- Type: Foldable or fixed bench seat
- Material: Cushioned for comfort, made from durable, easy-to-clean fabric or vinyl
- Storage: Optionally includes under-seat storage for medical equipment or supplies
- Capacity: Typically accommodates 2-3 people or one patient

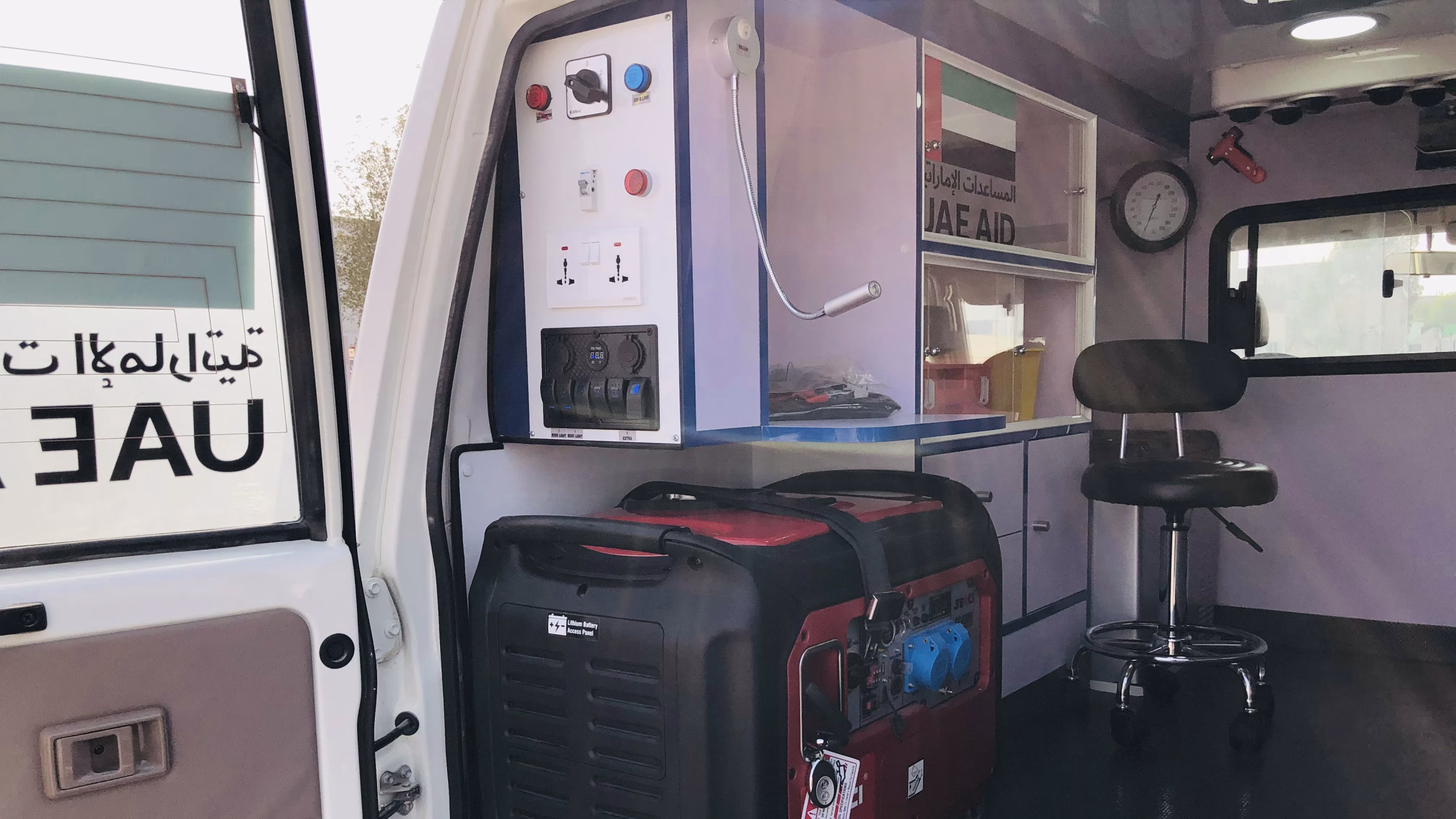

- Electrical Panel with ECB & Sockets
- Main Electrical Panel: Includes an Earth Leakage Circuit Breaker (ECB) for safety
- Sockets: Multiple 220V AC and 12V DC sockets for medical equipment and other needs
- Wiring: Heavy-duty, insulated, and appropriately fused for safety
- Shoreline Connection: For external power supply, especially when stationary at a location
- Breaker Protection: To safeguard against electrical faults and overloads
- Shoreline Connection
- Power Input: For connecting the mobile clinic to external 220V AC grid power
- Connector Type: Standard industrial plug for secure, reliable connection
- Features: Ensures continuous power when stationary for prolonged periods
Additional Features
- Interior Insulation: Acoustic and thermal insulation for comfort and privacy
- Lighting: LED interior lights for low power consumption

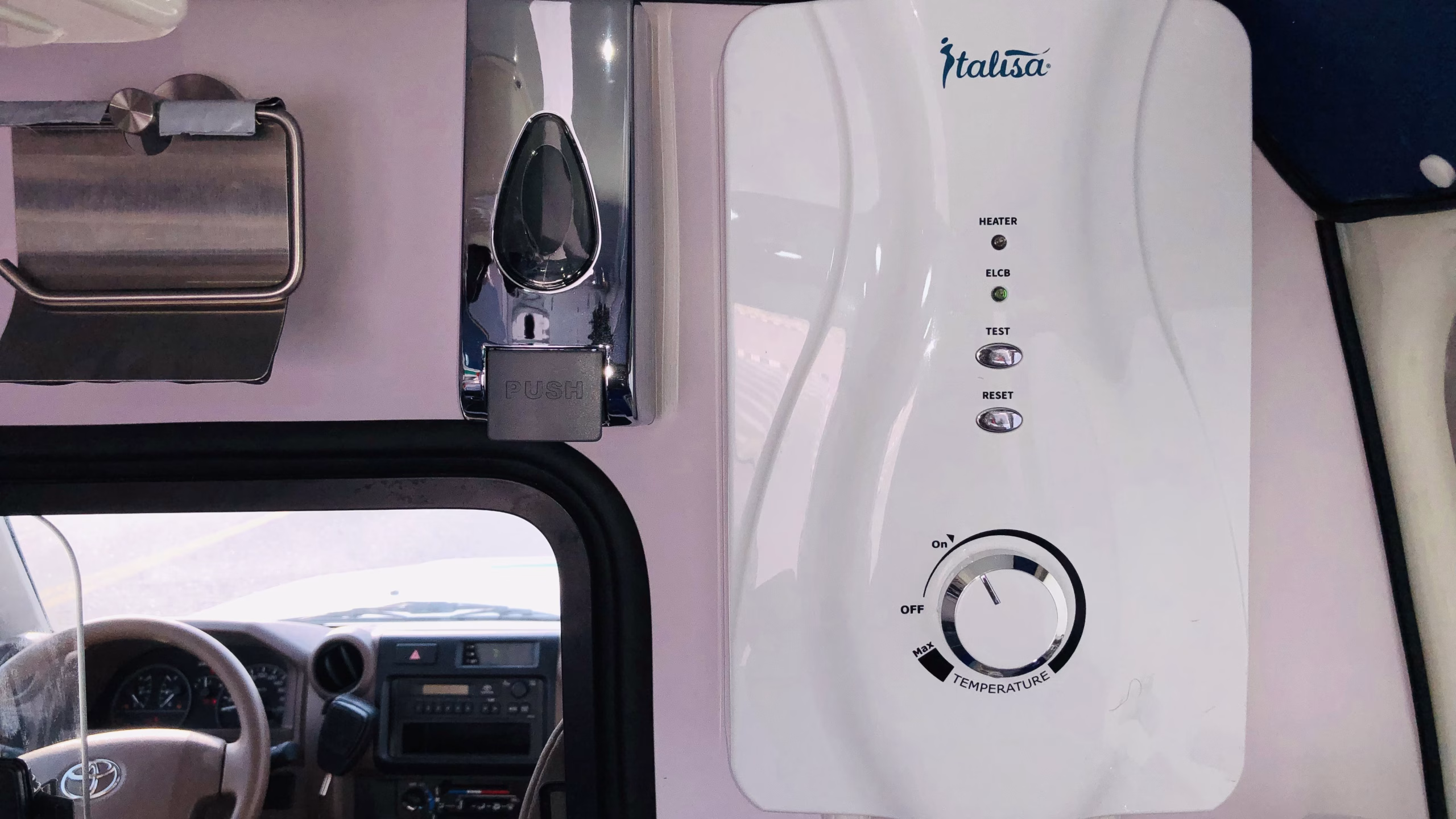

- Water System: Freshwater tank (e.g., 50L) with pump, handwash station, and drainage
- Exterior Design: Medical markings, emergency lights, and a retractable awning for shade
- Storage: Custom storage solutions for medical tools, consumables, and supplies
- Ventilation: Roof vent or fan for air circulation and to minimize humidity
This setup ensures that the mobile clinic is fully equipped for on-the-go medical care, with all essential equipment powered and easily accessible.
